Spiral Conveyors
Unit Load Spiral Conveyor
Vertical conveying built around the load and the line.
The machine

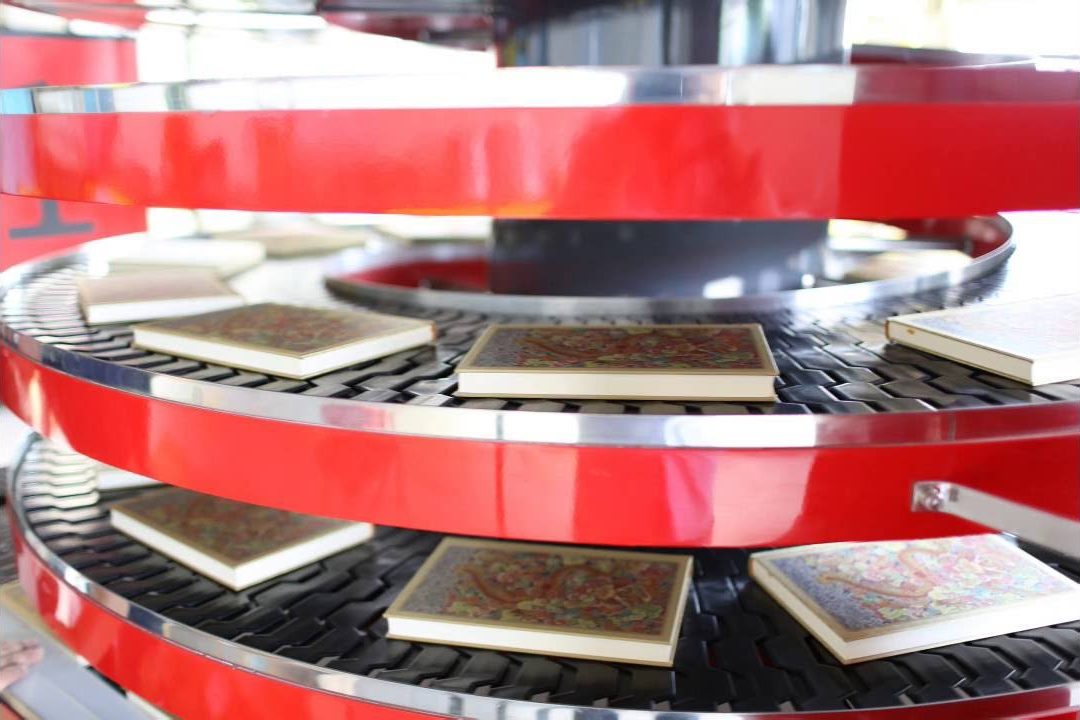

Unit Load Spiral Conveyors move cartons, cases, crates, totes and other stable unit loads between levels in a compact footprint.
The conveyor is configured around the product dimensions and weight, required elevation change, throughput, direction of travel and the equipment at the inlet and outlet.
Best suited for
- Moving unit loads upward or downward
- Connecting production, packing or distribution levels
- Continuous conveying where floor space is limited
-
Application example
Unit load spirals in a distribution centre
Unit load spiral conveyors elevating cartons between levels in a working distribution centre.
-
Cartons in the factory

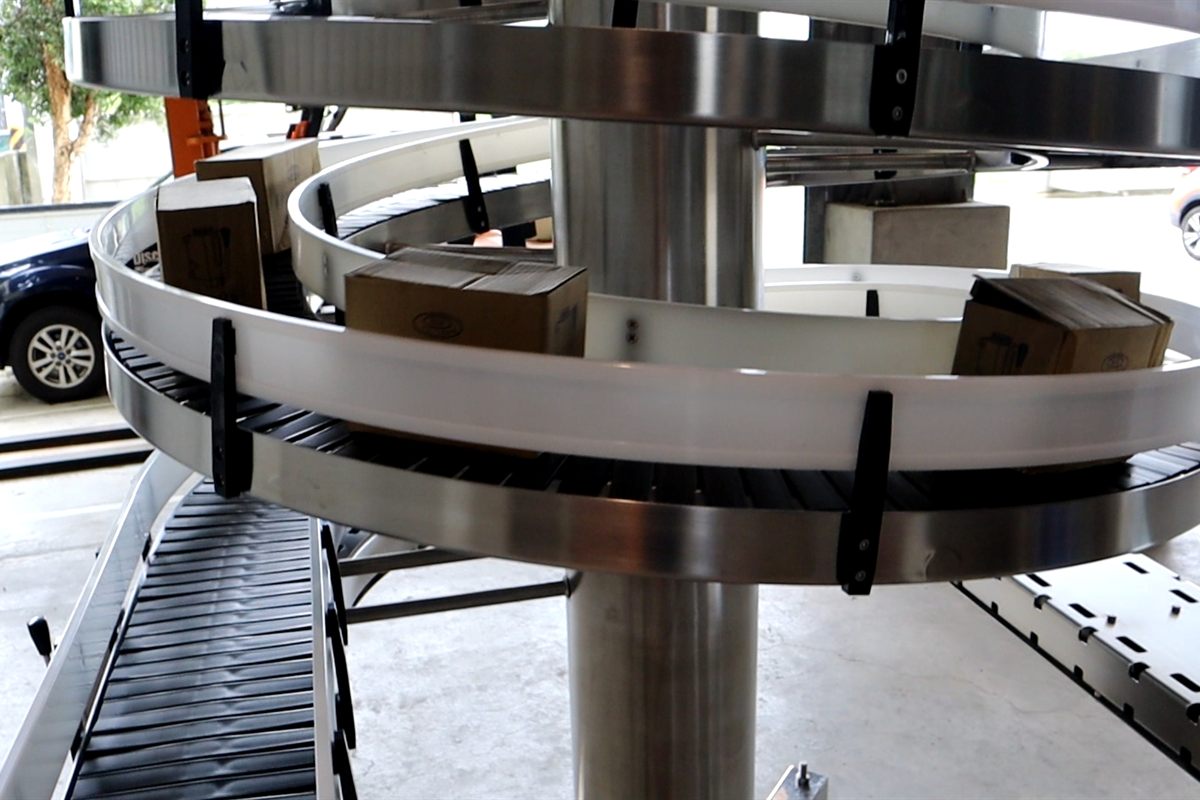

Cartons riding the slat chain through a change of level.
Technical data
Specifications and options
Figures are for the standard machine. Confirm them for your goods, layout and configuration.
Technical Specifications
Dimensions
- Slat chain width
- 400 mm or 600 mm The most used widths. Other widths are made to order.
- Outer diameter
- Less than 2000 mm On the standard machine.
- Turns
- Maximum 12
Standard slat-chain widths across NEXUS spirals
- 135 mm Narrow Track
- 165 mm Narrow Track
- 200 mm
- 300 mm
- 400 mm Most used
- 500 mm
- 600 mm Most used
Other widths are made to order.
Layout

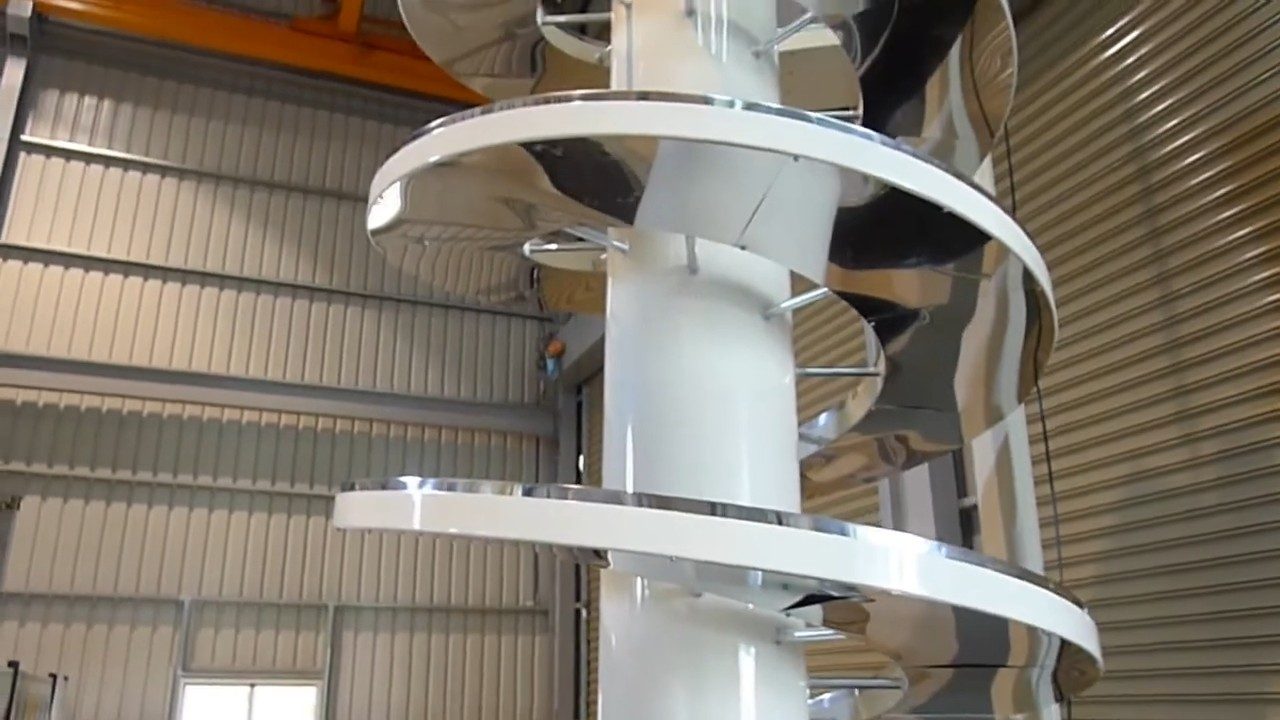

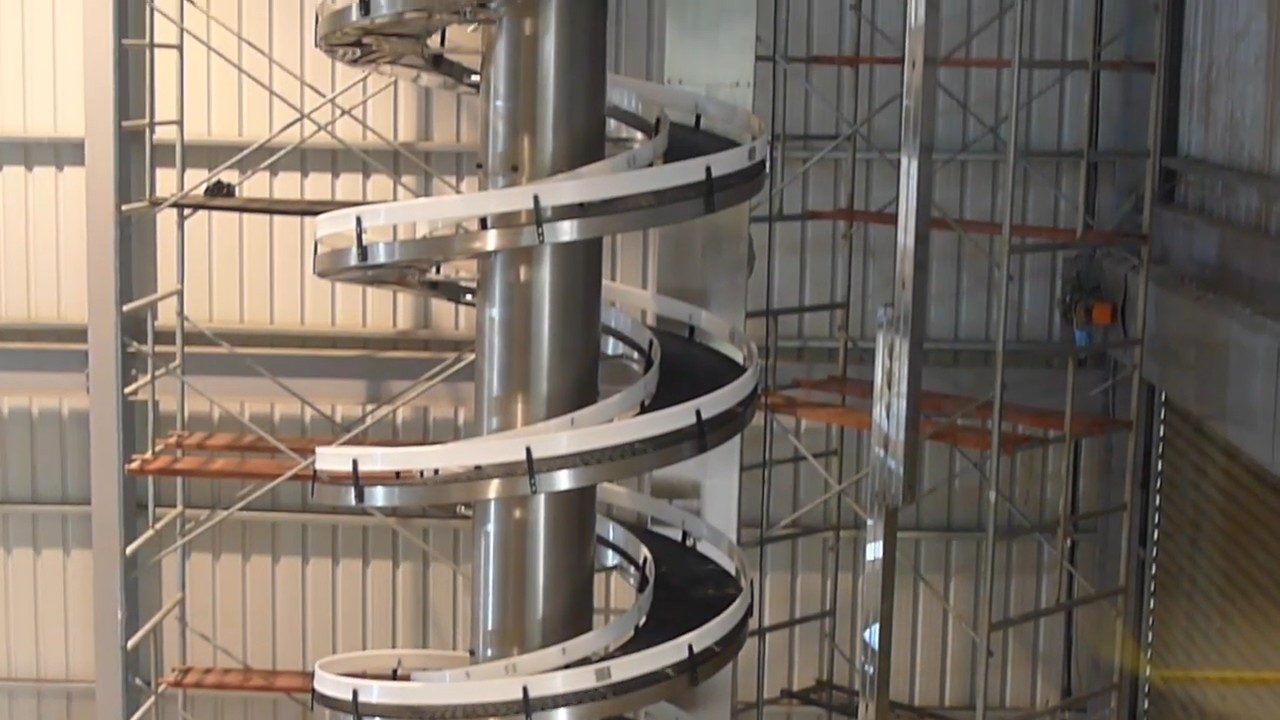

- Direction
- Upwards, downwards, or bidirectional in one machine
Inlet & outlet configurations
Choose the inlet and outlet arrangement to suit your line.
Speed & Load
Speed
- Conveying speed
- 60 m/min Recommended maximum.
- Variable speed
- Available State the speed range when ordering, and the speed control is set up to suit.
Load
- What sets the load capacity
- The tensile force of the transmission chain
- Total load capacity
- Within 1200 kg on a mild-steel transmission chain; within 1000 kg on a stainless-steel transmission chain A safe range for the total load, not a rated maximum.
Temperature
- Product temperature
- Up to 50 °C in the contact zone between chain and product Special heat-resistant materials are available on request.
Materials & Colours
Materials

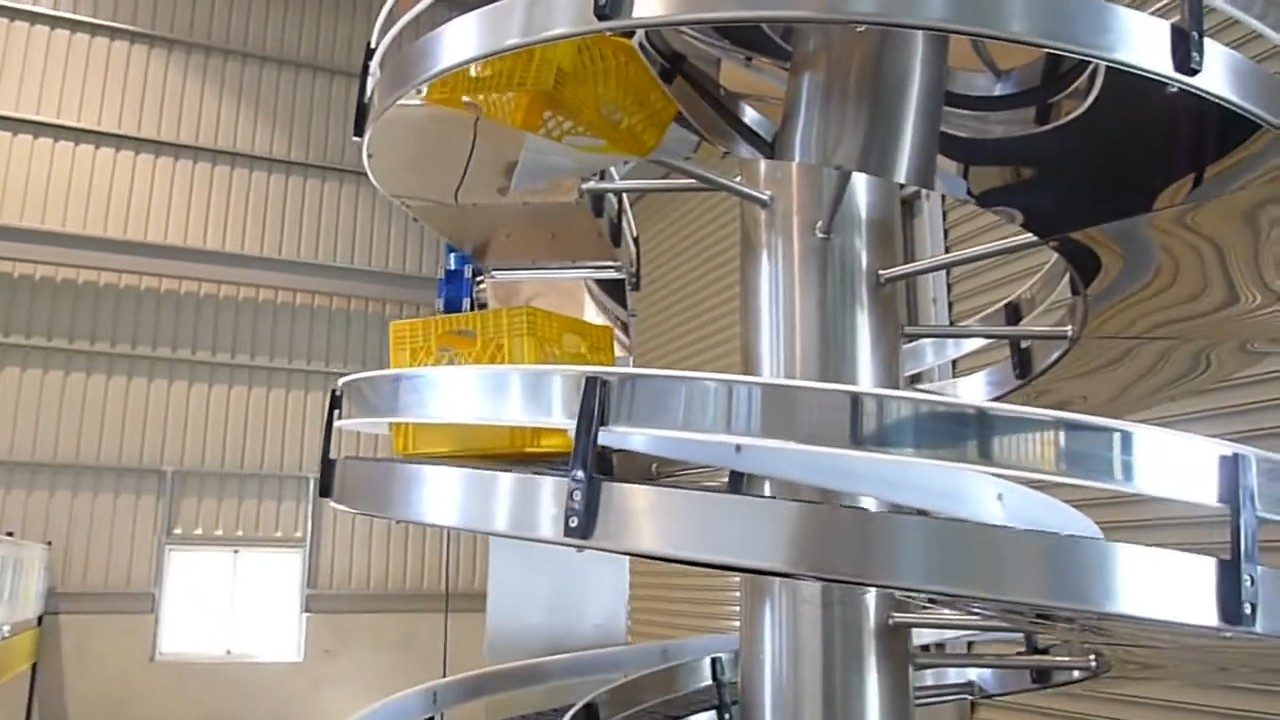

- Frame
- Stainless steel, or mild steel painted in a double coat — primer and topcoat
- Transmission chain
- Mild steel or stainless steel The chain material sets the load range — see Speed & Load.
Colour
- Painted colour
- One of the NEXUS classic colour schemes, or a colour specified from the RAL colour chart A painted mild-steel frame is finished to the colour agreed for the installation.
-

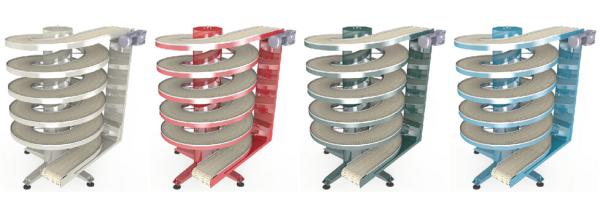

The NEXUS classic colour schemes. Screen colours are approximate.
Slat Chain & Equipment
Chain construction
- Slat chain
- Designed and made by NEXUS in Taiwan
- Slat chain material
- Composite plastic with high rigidity, high impact resistance and low friction Reduces wear when goods accumulate on the chain.
- Fitting
- Slats fit onto the transmission chain without special tools
- Maintenance
- The modular slat chain can be assembled and disassembled for maintenance
- Anti-slip cover
- A high-friction TPR rubber cover on the slat surface — option Not for use in special high- or low-temperature environments.
Equipment
- Lubrication
- Manual as standard An automatic lubrication device is available as an option.
Discuss your application
Send us the product dimensions and weight, required throughput, elevation change, available footprint and the equipment at either end. NEXUS will configure the conveying system around your line.
