Narrow Track Spiral Conveyor
A spiral built on a narrower track, for smaller goods that do not need the full slat width.
The machine

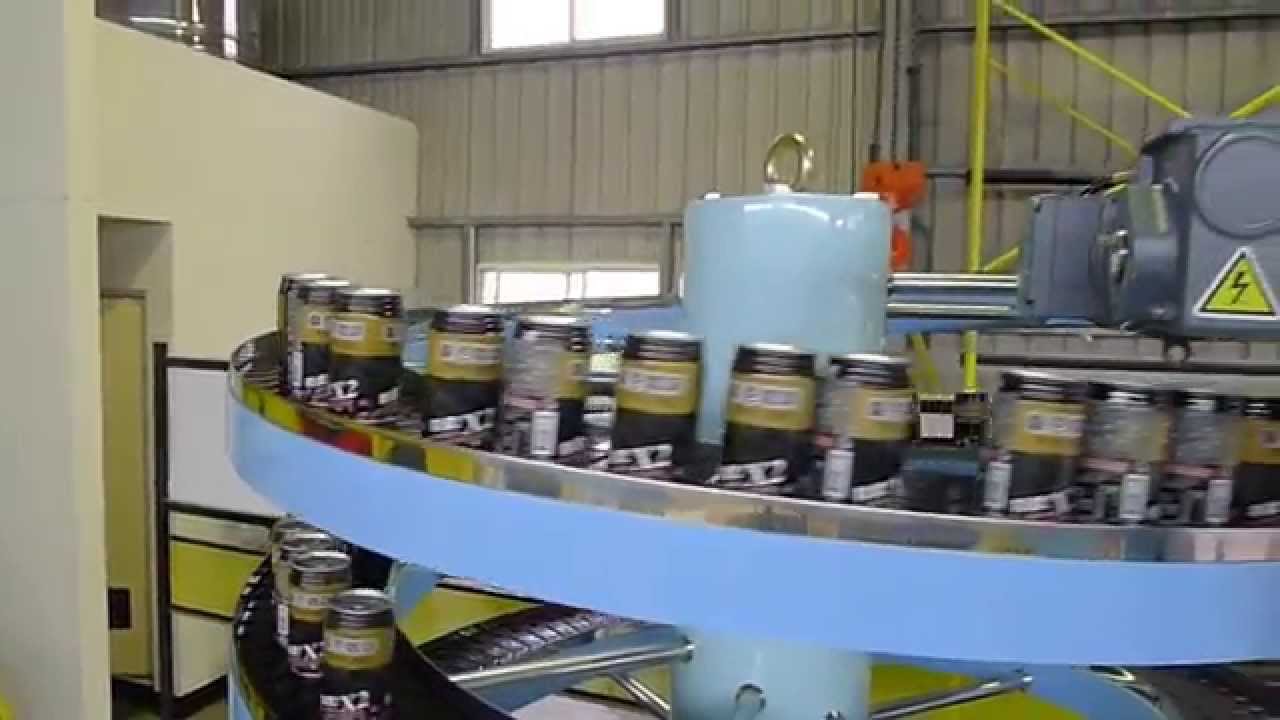

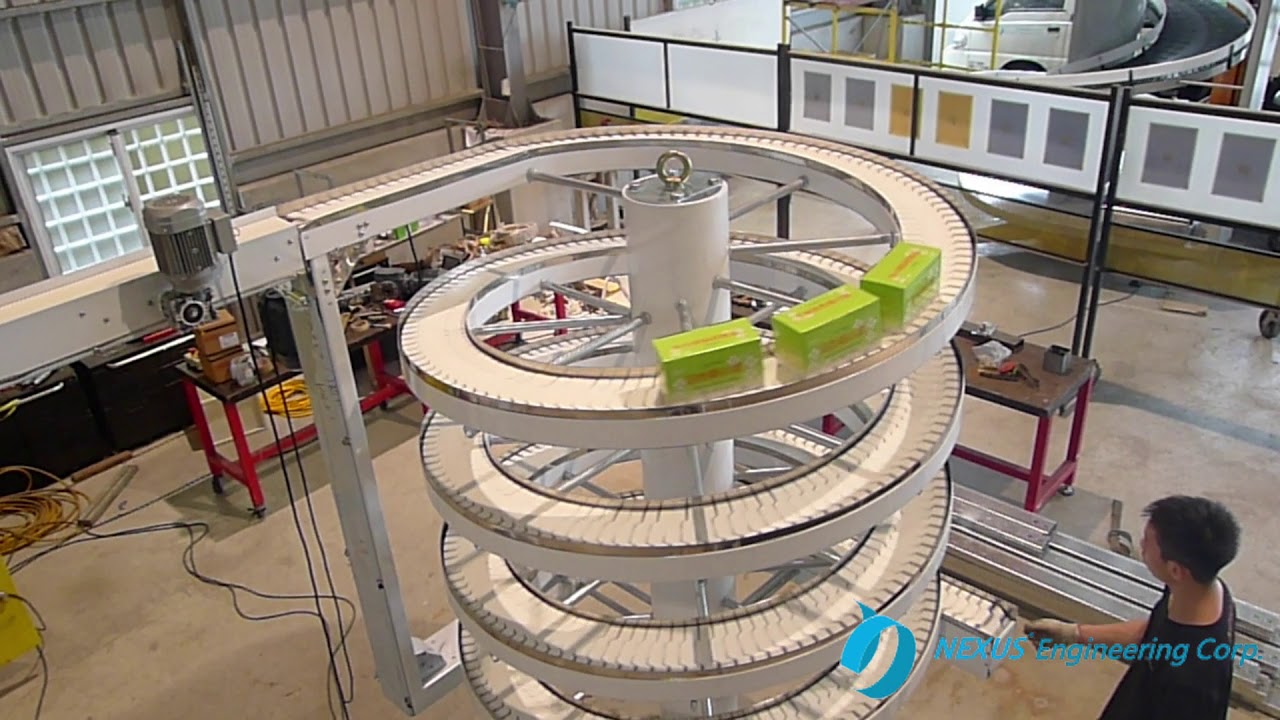

Bars, packs and similar small goods travel in quantity but occupy little of the track. The Narrow Track Spiral Conveyor carries them on a track narrower than the standard 400 or 600 mm slat chain.
-
Application example
Soap production

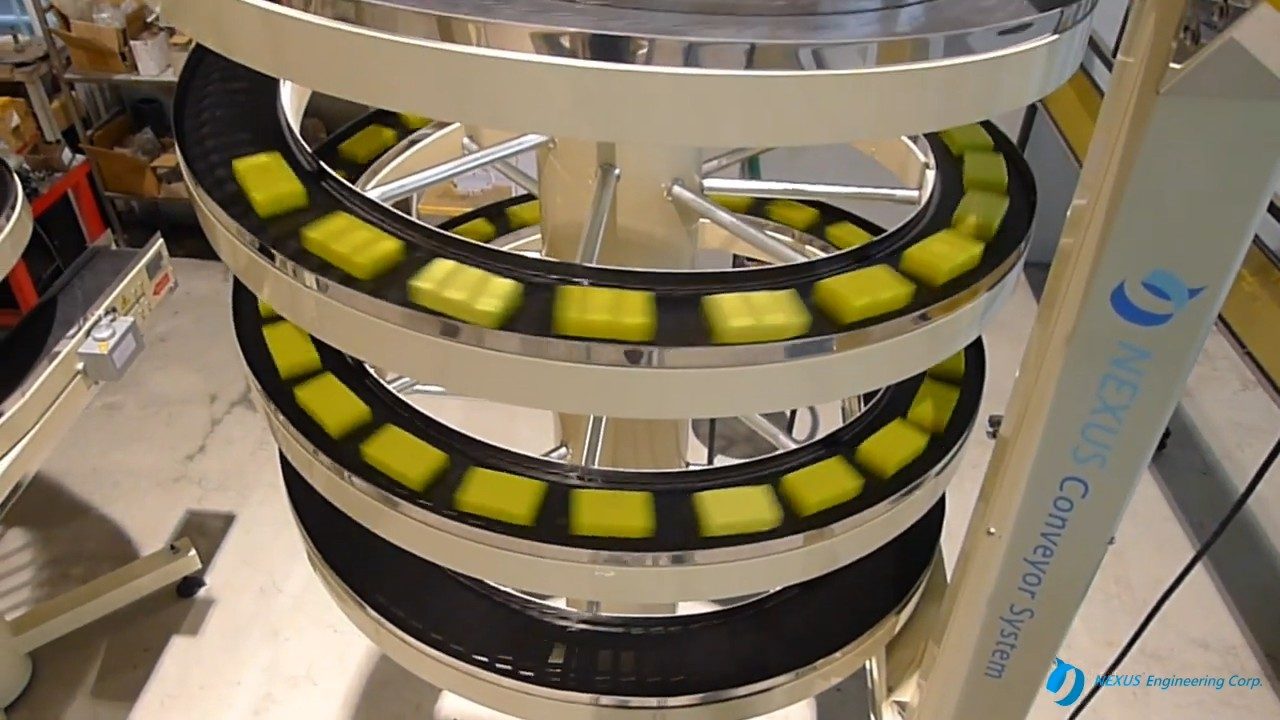

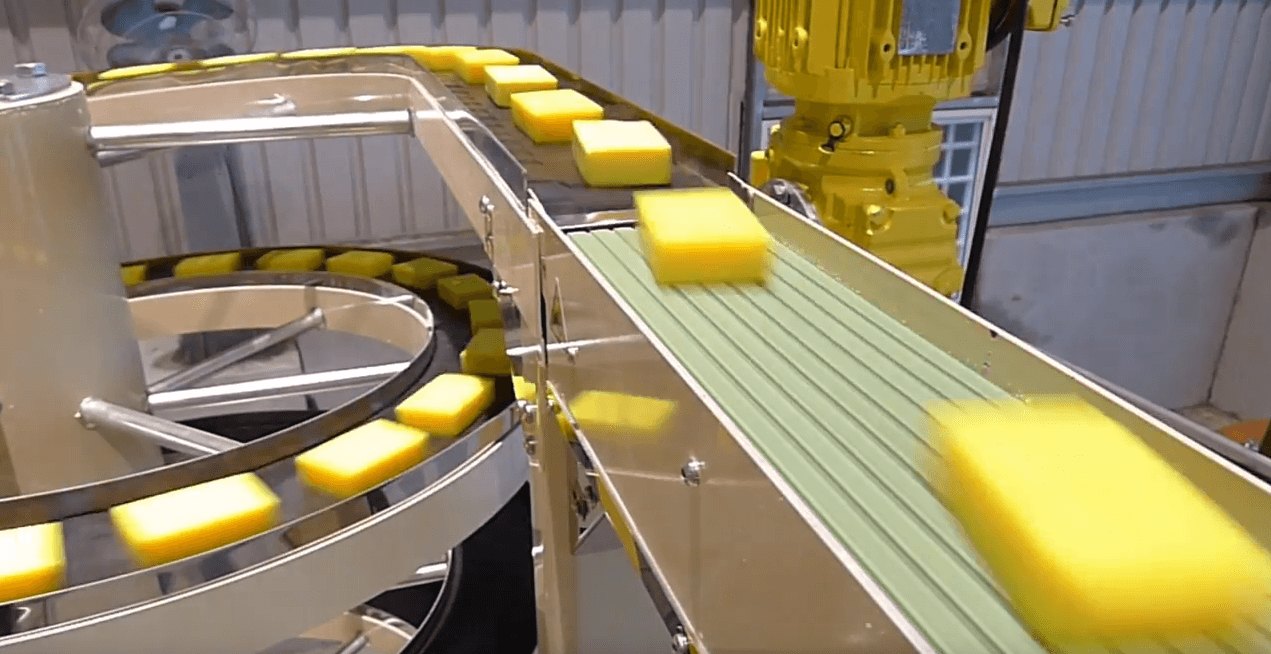

In a soap production application, a Narrow Track Spiral provided the conveying time required for cooling while keeping the equipment footprint compact.
Technical data
Specifications and options
Figures are for the standard machine. Confirm them for your goods, layout and configuration.
Technical Specifications
Specifications
- Direction
- Upwards, downwards, or bidirectional in one machine
- Frame

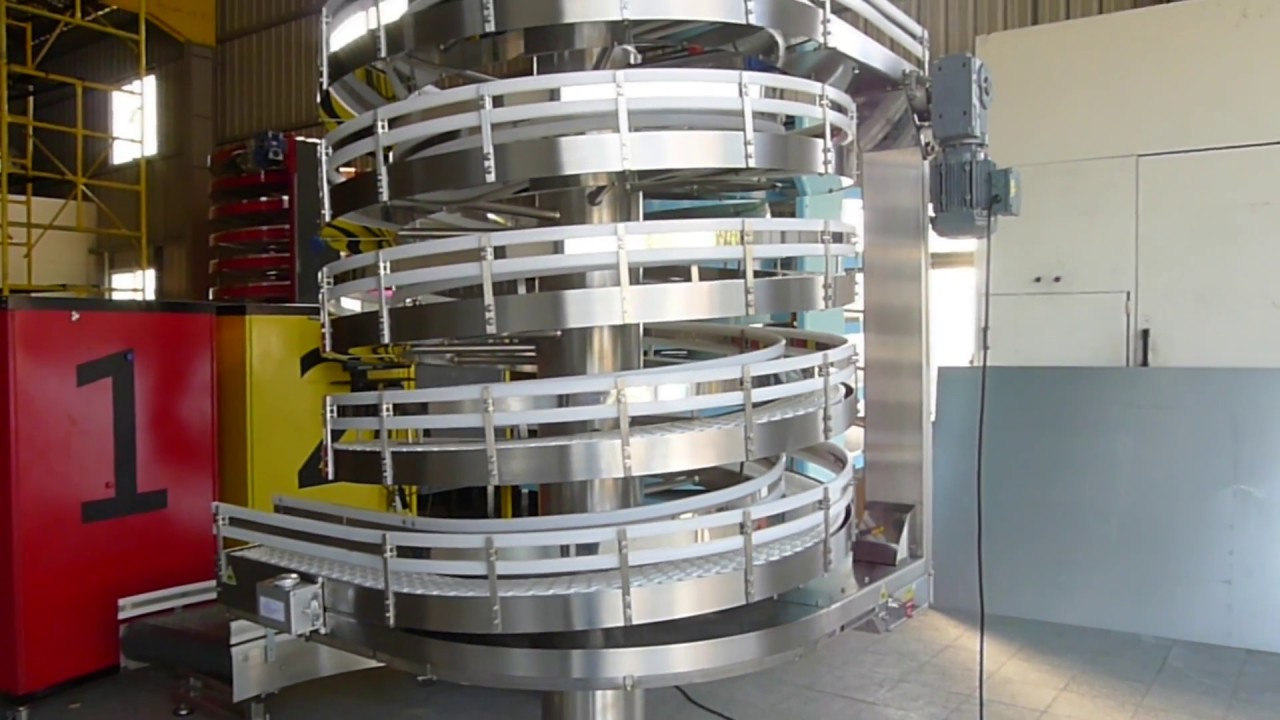

- Stainless steel, or mild steel painted in a double coat — primer and topcoat
- Load capacity
- Load capacity is specified for the product and conveyor configuration.
Inlet & outlet configurations
Choose the inlet and outlet arrangement to suit your line.
Equipment
Equipment
- Slat chain
- Designed and made by NEXUS
Discuss your application
Send us the product dimensions and weight, required throughput, elevation change, available footprint and the equipment at either end. NEXUS will configure the conveying system around your line.
