Technical Data
● Inner turning radius: 600mm(min.)
● Angle: 90 and 180 degree are standard angle, other angle including 45, 60, 135 and 150 are customized.
● Belt width: 200mm, 400mm, 600mm, 800mm and 1000mm
● Maximum load capacity: 110KG/200mm(W)
● Maximum speed: 60M/Minute
● Working temperature：-30℃ — 100℃

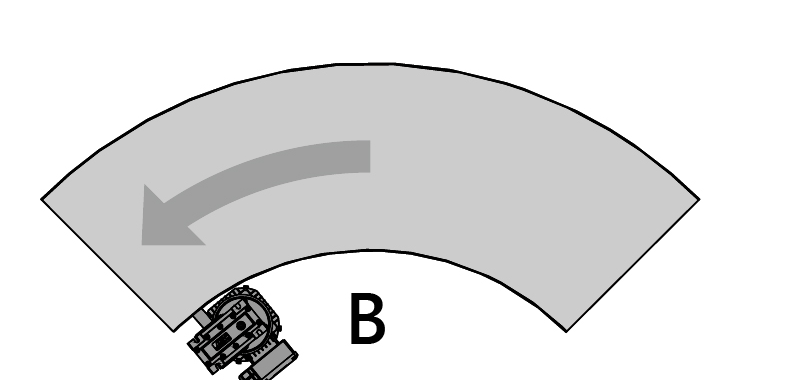

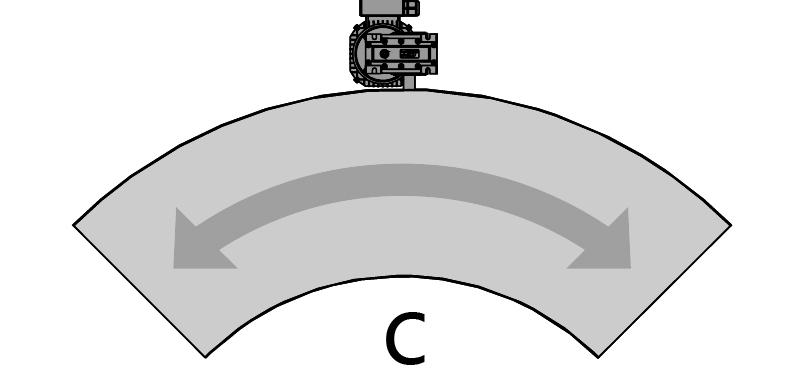

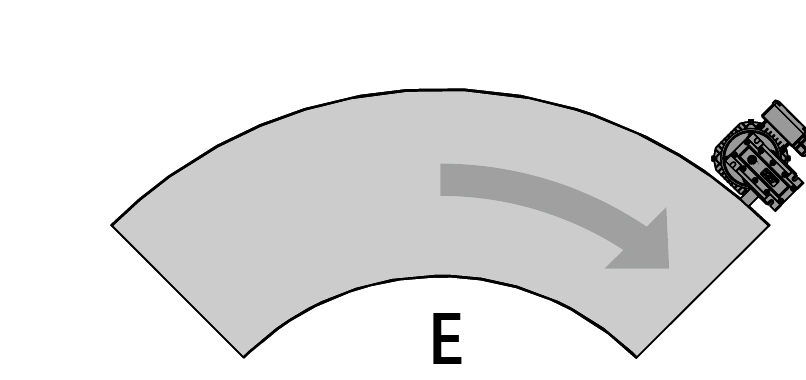

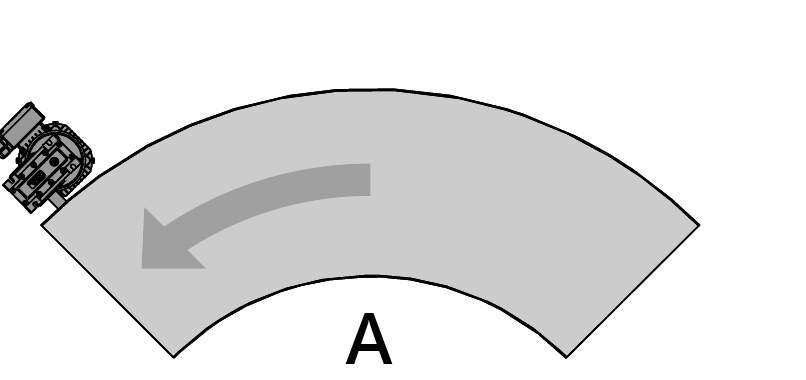

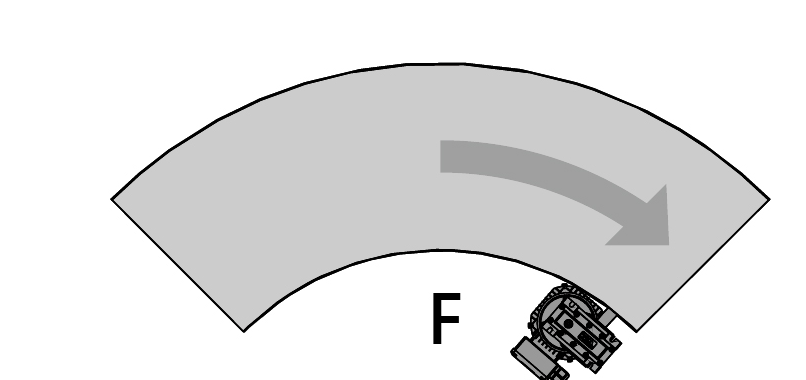

● Direction: Right and left adjustable
● Height of conveyor: Customized and adjustable

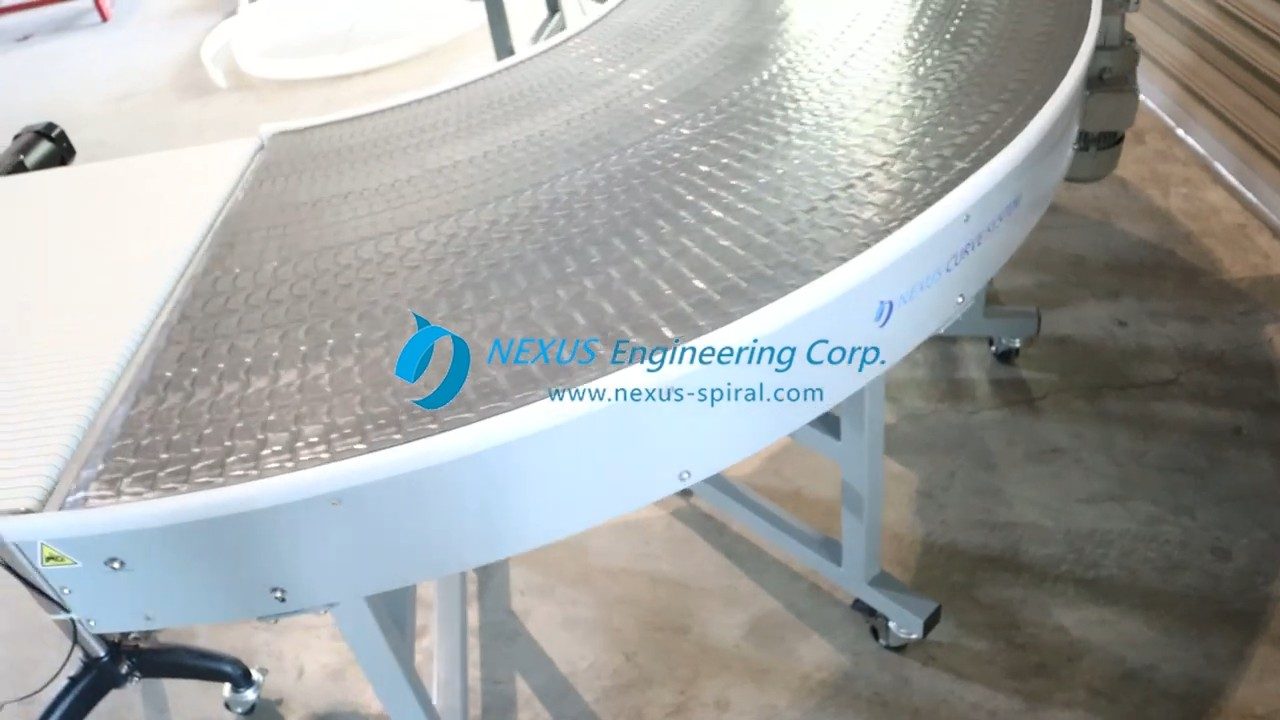

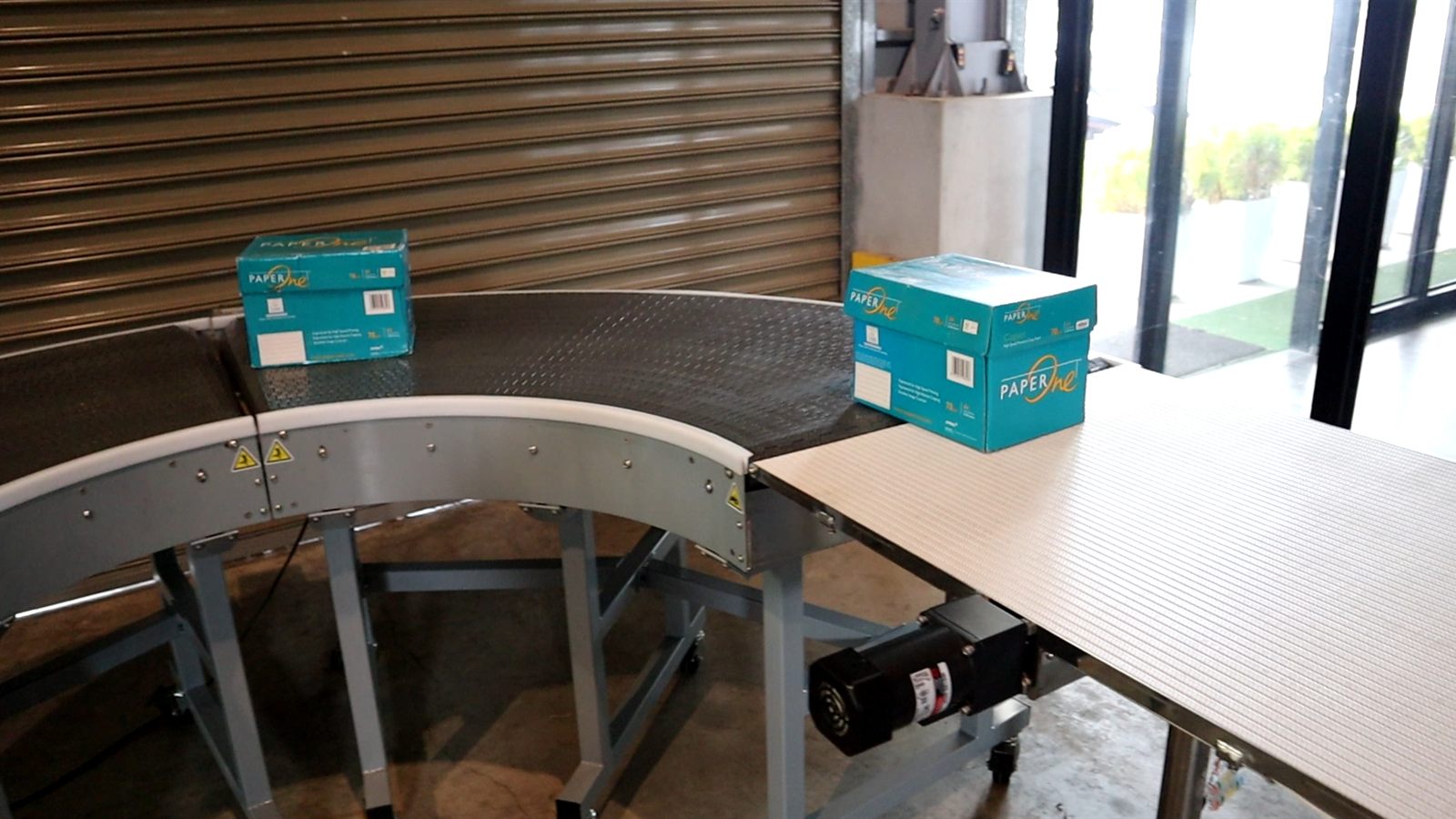

Cost Saver, Space Creator, Efficiency Promoter, NEXUS Curve conveyor, provides you with flexible layout in turning.
Material

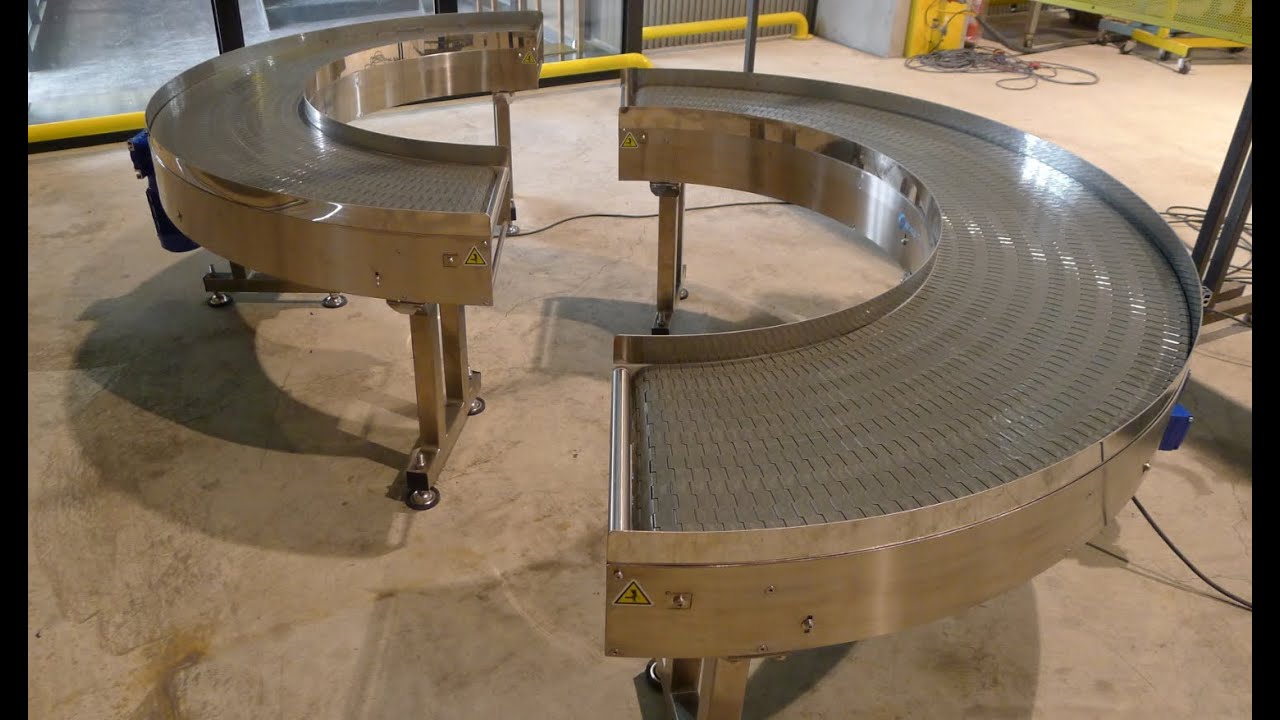

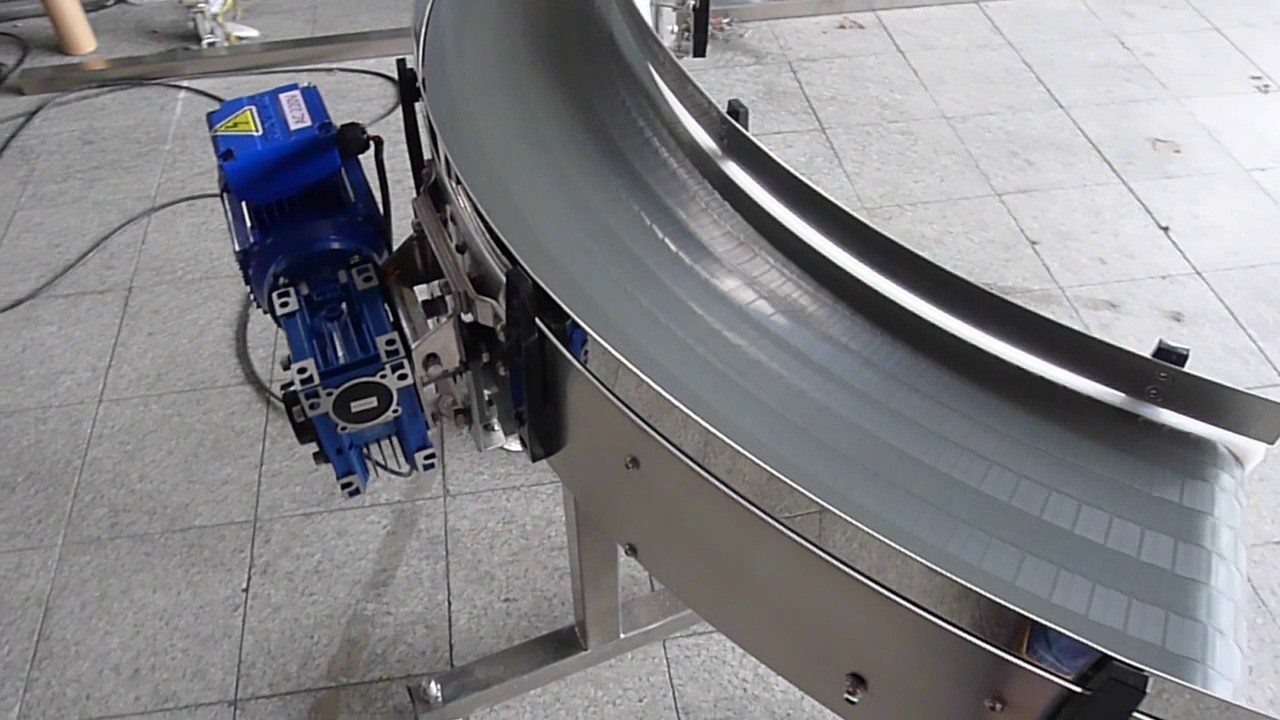

● Material of NEXUS curve conveyor frame: Mild steel painted (RAL color optional) and Stainless steel
● Material of conveyor belt:Please refer to the feature description of modular belt
● Material of sprocket: POM
Color
If you choose mild steel as material of your curve conveyor, a standard color appointed by you will be necessary for painting work.
Please refer to RAL KT table as below to confirm which color of the curve conveyor you prefer:
Note: Different computer’s monitors may lead to a difference in color tones, if a specific color tone is required, please send us the specific color sample by post.

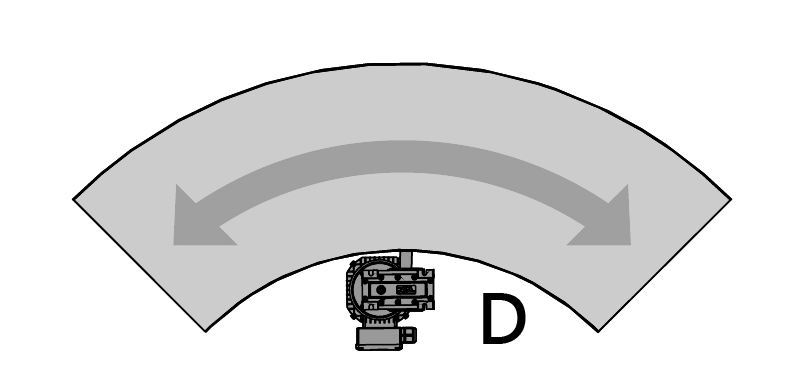

● Direction and speed of the conveyor belt can be adjusted according to operation needs.
● 90 and 180 degree are standard angle, other angle such as 45, 135 etc are customized.
● Belt width ranges from 200mm to 1000mm for your choice, perfectly matching with other types of conveyors or integrated with conveyor system.

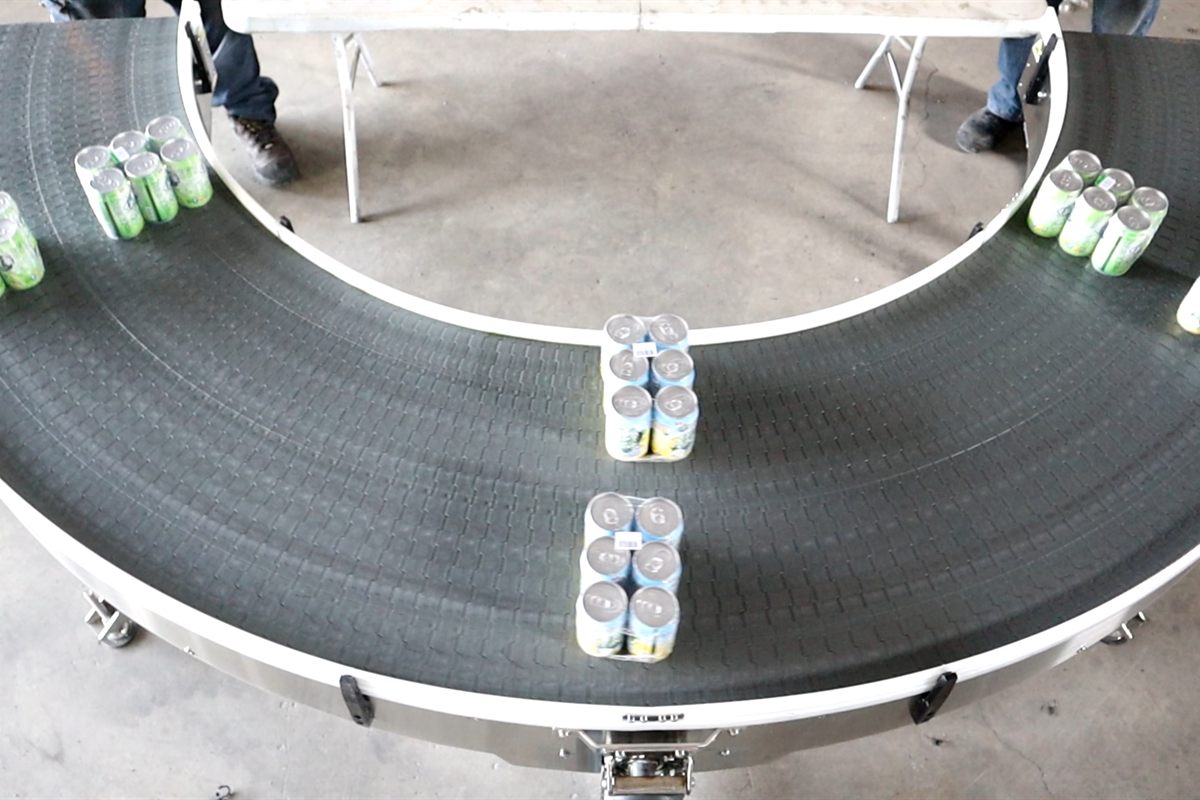

● Lightweight design makes it easy to install or carry, and can be widely used in different industries, such as paper, printing, beverage and packaging etc.
Accurate angle
Angle of the conveyor belt is accurate and without any error.

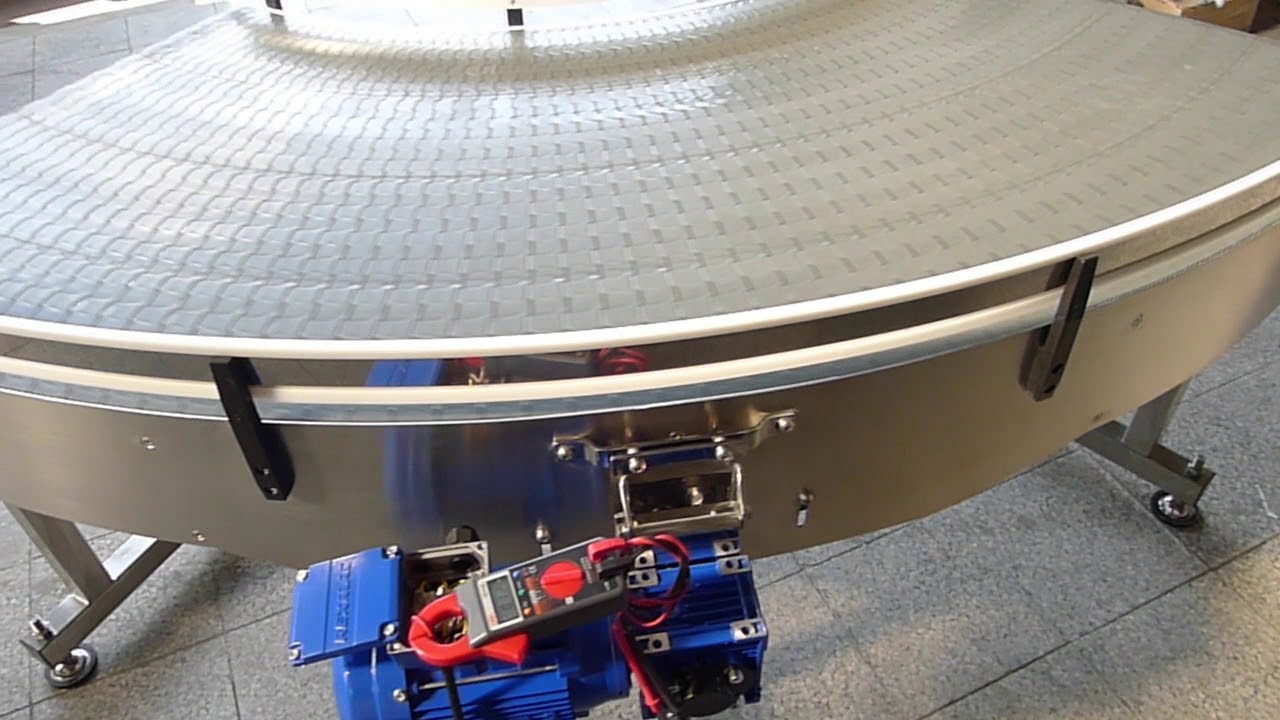

Seamless belt surface
0% open area conveyor belt surface, it is impossible for other common curve modular belts and they are always flush grid. Seamless surface can satisfy the requirements which have high demand for belt surface.
Big load capacity
Made from polymer plastic material, the conveyor belt of curve conveyor is high in impact resistant and low in friction; The tensile force is over 10 times more than that of the general PVC belt.
Various material optional
Different material including PP, PE, POM and PA is optional for various operating environment. You can appoint FDA material, or common industrial standard material.
Easy to maintain
modular design of the belt makes the replacement and maintenance as easy as playing Legos, shorten the downtime in utmost.
You can purchase new belt or modules from NEXUS to replace the old one without professional train.
